15w ceiling mounted led fixture, ip65 bulkhead led light, waterproof bulkhead fixture led for indoor

FOB Reference Price:Get Latest Price
US $20-32 / Pieces | 1 Piece/Pieces bulkhead led light sample available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Ceiling Lights
LED Light Source:
Epistar leds
Install Style:
Surface Mounted
Input Voltage(V):
AC90-265V
Lamp Luminous Flux(lm):
1300
Lamp Luminous Efficiency(lm/w):
87
CRI (Ra>):
80
Color Temperature(CCT):
2800K-6000K
Working Temperature(℃):
-40 - 60
Working Lifetime(Hour):
40000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
CE, FCC, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
RAYOU
Model Number:
RL-SENWCL05-15W
Power:
15W; 3W under emergency situation
Beam angle:
120 degree
Detection angle:
360 degree
IP range:
IP65 waterproof
Time setting:
8 seconds-12 minutes
Detection zone:
1m-8m adjustable
Size:
300*300*100mm
Application:
bulkhead led light for stairs,corridor,emergency exit
Lamp Power(W):
15
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month ip65 ceiling mounted led light
Packaging & Delivery
Packaging Details
Each bulkhead led light in an inner box, then 10pcs to an outer carton
Port
Shenzhen Hongkong
Lead Time :
7-10 days after payment confirm

bulkhead led light

15w ceiling mounted led fixture, ip65 bulkhead led light, waterproof bulkhead fixture led for indoor

 Can be made 4 Types Light: <1>. Without microwave sensor    <2>. With microwave sensor                                                                   <3> . Microwave sensor with emergency    <4>. Only emergency

Product Description



ItemIP65 mounted ceiling light
Power15W (3W under emergency situation)
Beam angle120 degree
Detection angle360 degree
Detection zone1m-8m adjustable
Time setting                                      8 second-12 minutes
Input voltageAC90-265V
Output voltage48V
Size300*300*110mm
Net weight1.3kg

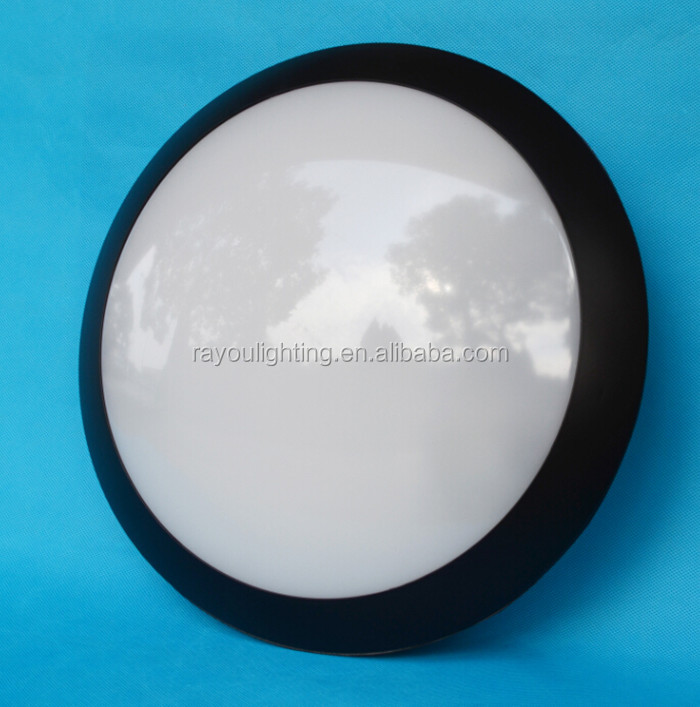

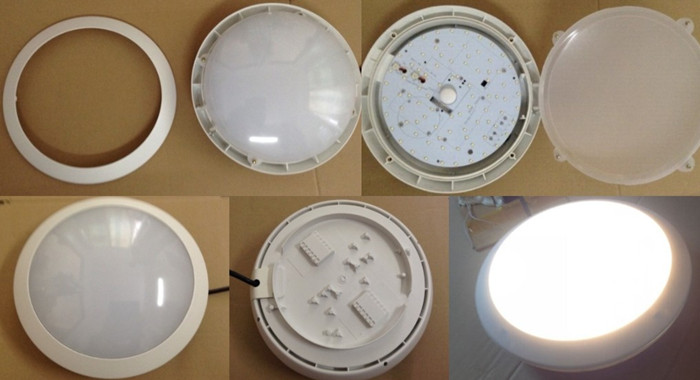

Detailed Photo

mounted ceiling light ip65emergency surface mounted ceiling lightblack led mounted ceiling lightMounted ceiling led light

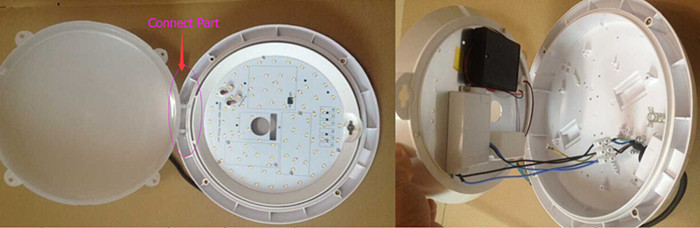

Hinge Design Optional:

For such hinge desgn model, you just need to flip the cover, then can easily change the battery.

ip65 emergency sensor light 15w

Mounted ceiling 9



Mounted ceiling 8

Time setting:

bulkhead led light can be set to stay ON for any period of time between approx. 8sec (turn fully anti-clockwise) and a maximum of 12min (turn fully clockwise). Any movement detected before this time elapse will re-start the timer. It is recommended to select the shortest time for adjusting the detection zone and for performing the walk test.

NOTE: after the light switches OFF, it takes approx. 1sec before it is able to start detecting movement again. The light will only switch on in response to movement once this period has elapsed.

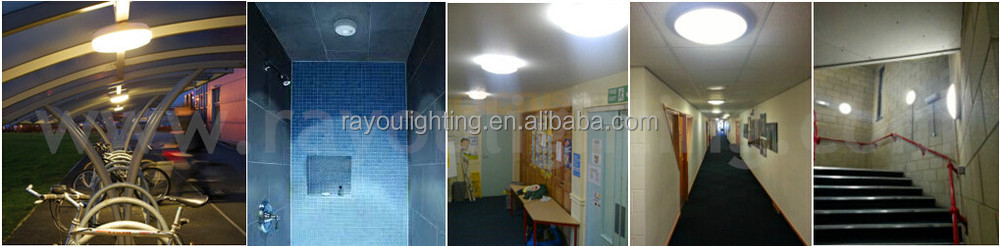

Application

1. bulkhead led light for hotels, Conference/Meeting rooms, bathroom, Factories&Offices Commercial purpose,  Residential,institution,buildings.

2.ip65 surface mounted ceiling light for schools,Colleges&Universities,  Hospitals.

ip65-waterproof-led-ceiling-light-15w-24w-for-corridor-bathroom-showroom-indoor-outdoor-application
