CE RoHS approved RGB RGBW outdoor LED Wall Washer

FOB Reference Price:Get Latest Price
US $48-50 / Pieces | 10 Piece/Pieces ip65 led wall washer sample is available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Wall Washers
LED Light Source:
3030SMD
Warranty(Year):
2
Input Voltage(V):
220VAC/24VDC
Lamp Luminous Flux(lm):
2800
Lamp Luminous Efficiency(lm/w):
80
CRI (Ra>):
75
Color Temperature(CCT):
2700-6500K
Working Temperature(℃):
-25 - 45
Working Lifetime(Hour):
35000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP67
Certification:
CCC, CE, EMC, FCC, LVD, RoHS, SAA, VDE
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
RAYOU
Model Number:
RL-XQ48WL10_-36W
Housing:
spraying coating aluminum
Glass:
6.4mm thick toughened glass
Angle:
10 ° 25 ° 45 ° 60 °
Color:
Grey or black
CCT:
Red, yellow, blue, green, white, warm white
control mode:
standard DMX512 interface
IP degree:
IP65
Current:
320mA
Product Name:
outdoor led lights wall washer
Lamp Power(W):
36
SupplyAbility
SupplyAbility:
30000 Piece/Pieces per Month ip65 dmx512 led rgb wall washer 36w
Packaging & Delivery
Packaging Details
1pcs outdoor led wall washer in one inner box
Port
shenzhen
Lead Time :
7~12days

outdoor led lights wall washer

CE RoHS approved RGB RGBW outdoor LED Wall Washer
rgb-led-wall-washer-light-72w

Product Overviews

1.IP65 waterproof and driver and light body unique integrated design.

2.High intensity aluminum led wall washer housing, anodized grey silver or black finished, advanced sand blasting oxidation treatment or spraying coating technology on surface for anti-aging, anti-UV and perfect thermal performance.

3.AC100-240V/DC24V input optional, AC input is more easy and convenient for installation.

4.IP68 waterproof lock, insert hexagonal stainless steel screw.

5.Original high power LEDs used only.

6.4mm thick toughened glass with high luminousness for shock resistance and high luminous efficacy.

7.Built-in high efficiency constant current power supply, ensure the stability of performance.

8.Lighting control mode: single color lighting or DMX RGB (Red, yellow, blue, green, white, warm white, etc.)

9. Use PMMA optical lens, good illumination. Optional 10 ° 25 ° 45 ° 60 ° angle to achieve the best effect.

10. polymer silicone seal, with excellent resistance to weathering and sealing performance. To ensure the excellent waterproof effect.

Application

1. ip65 led wall washer used for building facade lighting (grazing lighting, flooding lighting, washing lighting) for mansions, theaters, casinos, bridges, hotels and shopping centers.

2. Indoor wash lighting for special events, concerts, clubs, hotels, theaters

3. ip65 dmx512 led rgb wall washer 36w used for landscape lighting for gardens, theme parks and entertainment plazas and etc.

Specification

Model Name

RL-XQ48WL10_-9W

RL-XQ48WL10_-18W

RL-XQ48WL10_-24W

RL-XQ48WL10_-36W

Input Voltage

100-240VAC/24VDC

100-240VAC/24VDC

100-240VAC/24VDC

100-240VAC/24VDC

Frequency

50-60Hz

50-60Hz

50-60Hz

50-60Hz

Power Factor

≥0.86

≥0.86

≥0.9

≥0.9

Input current

320MA

320MA

320MA

320MA

LED Colors

R/G/B/Y/W

R/G/B/Y/W

R/G/B/Y/W

R/G/B/Y/W

LED Qty

9pcs

18pcs

24pcs

36pcs

Efficiency

≥80LM/W

≥80LM/W

≥80LM/W

≥80LM/W

Light Distribution

LED+PMMA lens

LED+PMMA lens

LED+PMMA lens

L LED+PMMA lens

Beam Angle

10°25°45°60°

10°25°45°60°

10°25°45°60°

10°25°45°60°

Power

9*1W

18*1W

24*1W

36*1W

Protection Grade

IP67

IP67

IP67

IP67

Housing material

Tempered glass+ Aluminum

Tempered glass+ Aluminum

Tempered glass+ Aluminum

Tempered glass+ Aluminum

Connection cable

Tri- wire core cable:

Brown, Blue,

Yellow-green

Tri- wire core cable:

Brown, Blue,

Yellow-green

Tri- wire core cable:

Brown, Blue,

Yellow-green

Tri- wire core cable:

Brown, Blue,

Yellow-green

Dimension

(L x W x H)

500*48*65mm

1000*48*65mm

1000*48*H65mm

1000*48*65mm

Certificates

CE RoHS

CE RoHS

CE RoHS

CE RoHS

Warranty

2 years

2 years

2 years

2 years

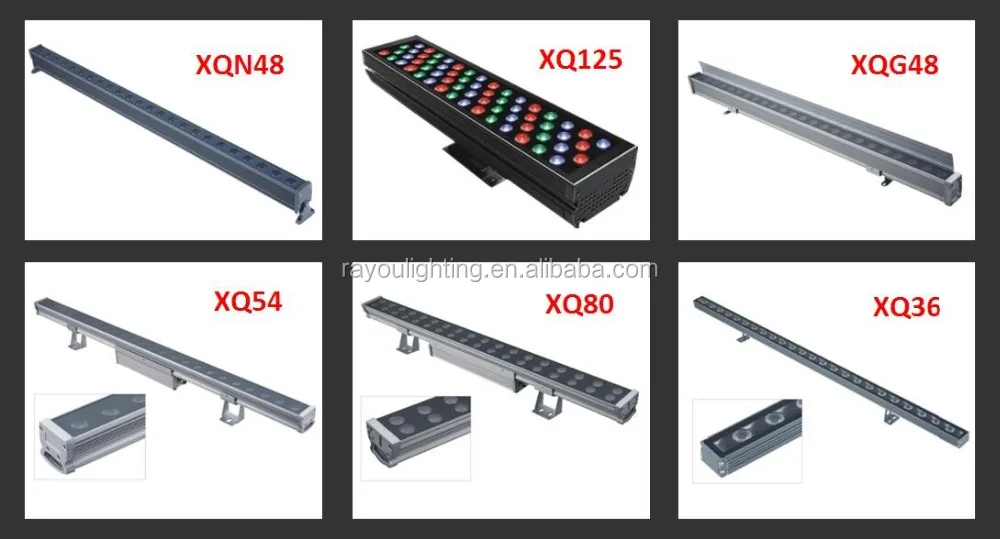

Photos

Proiector-liniar-100cm-RGB-24W-36W

rgb-rgbw-led-wall-washer-light-XQ54

led wall washer series 1led wall washer series 2led wall washer series 3led wall washer lighting effect

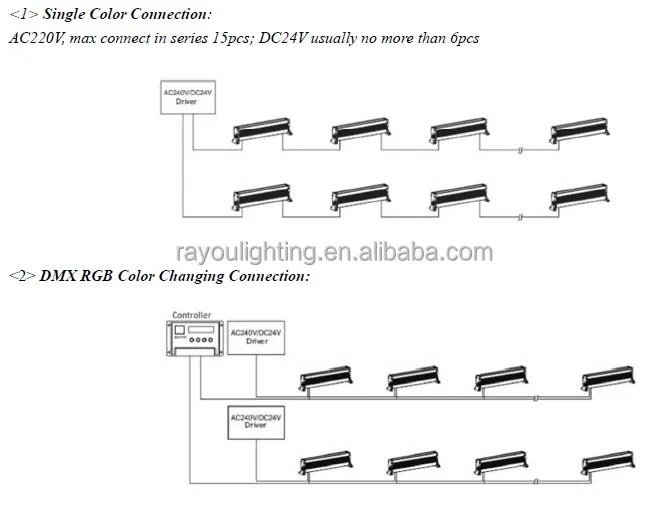

Installation


More related similar led wall washer light :
 more-led-wall-washer

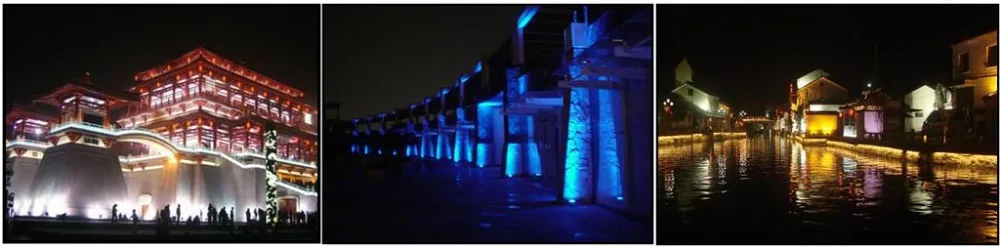

IP65 led wall washer application:
outdoor led lights wall washer  is a kind of architectural decorative lighting, widely used for outdoor theater lighting, hotel,
outdoor lighting, commercial lighting, disco lighting, stage, club, bar, and garden decoration.

ip65-wall-washer-rgb-led-application
